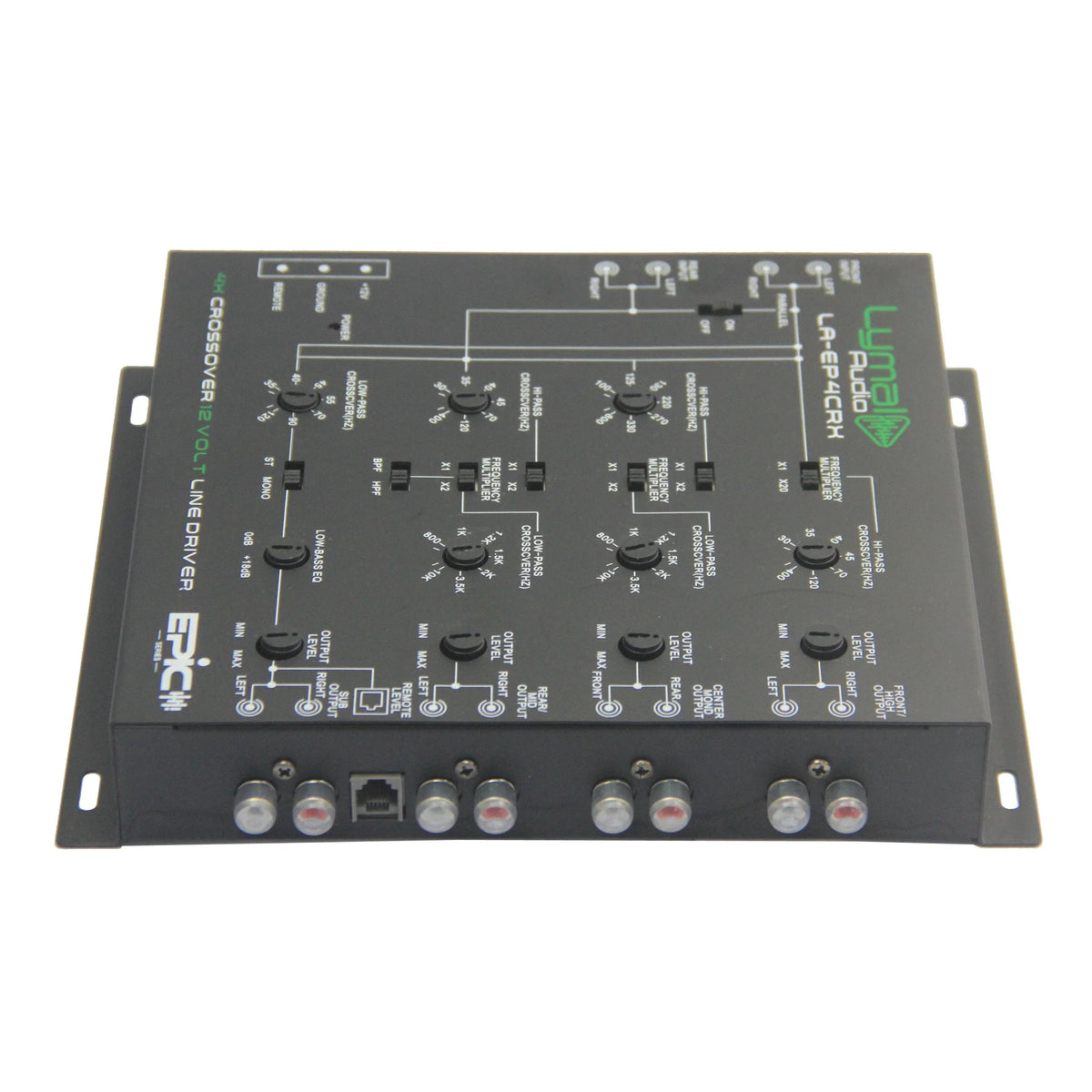

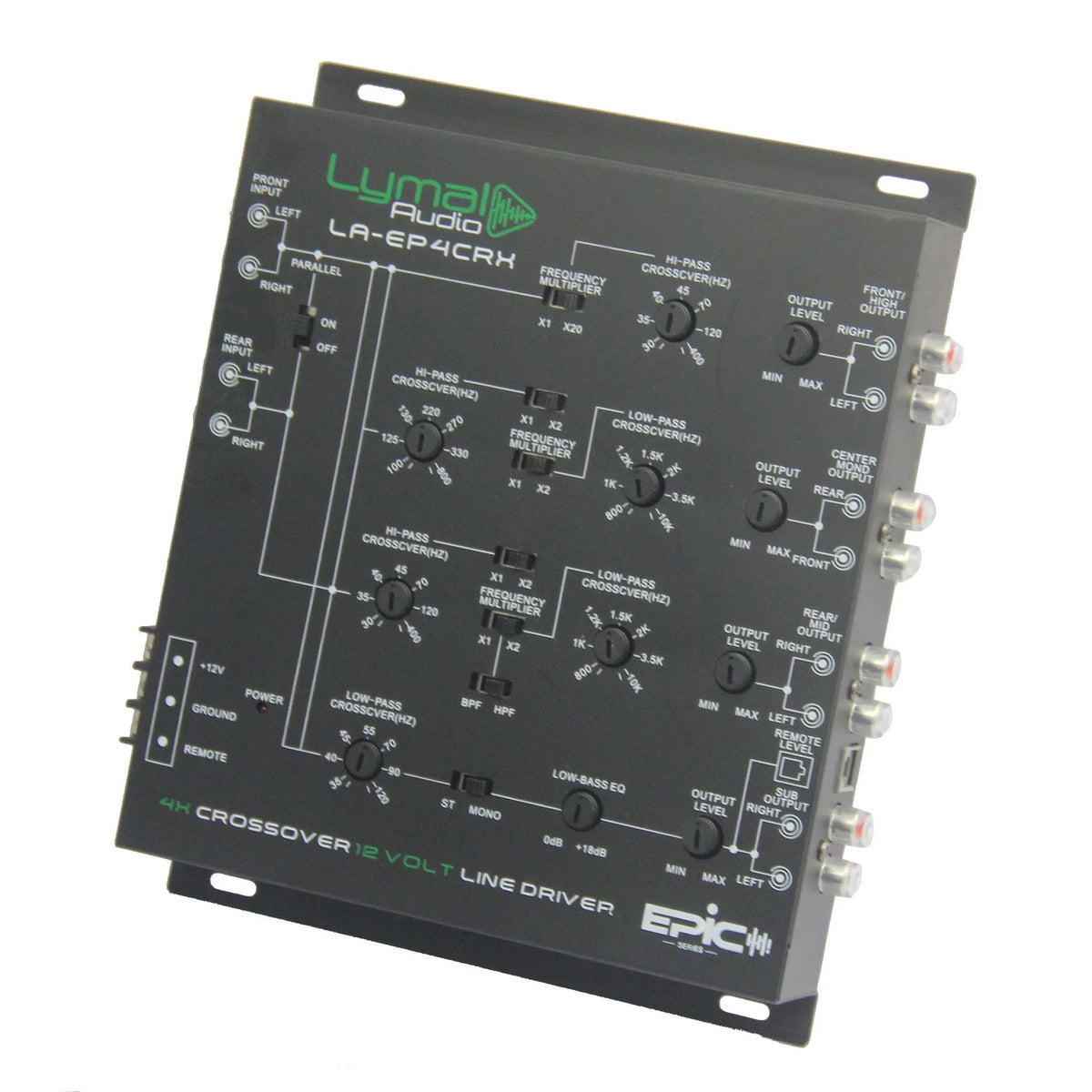

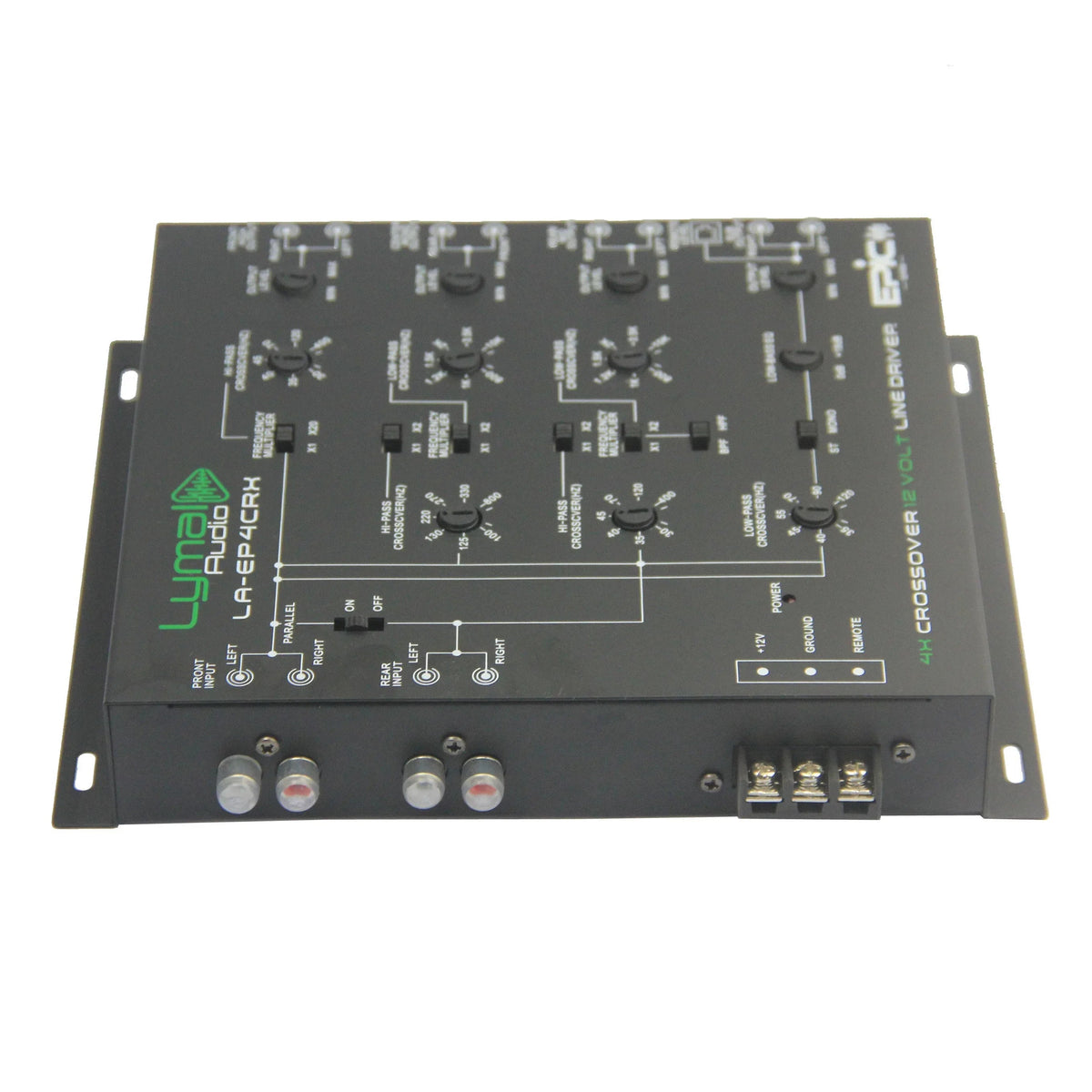

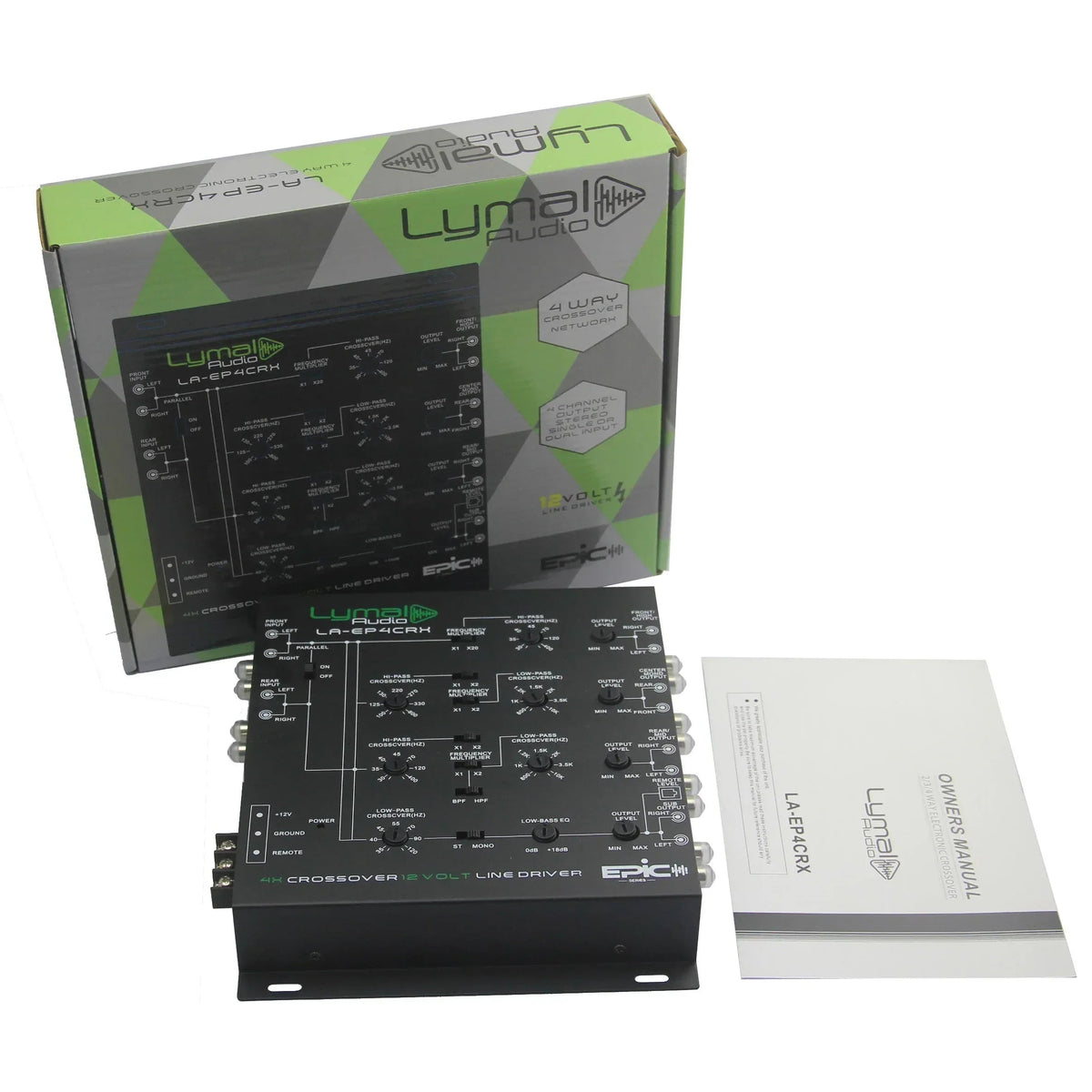

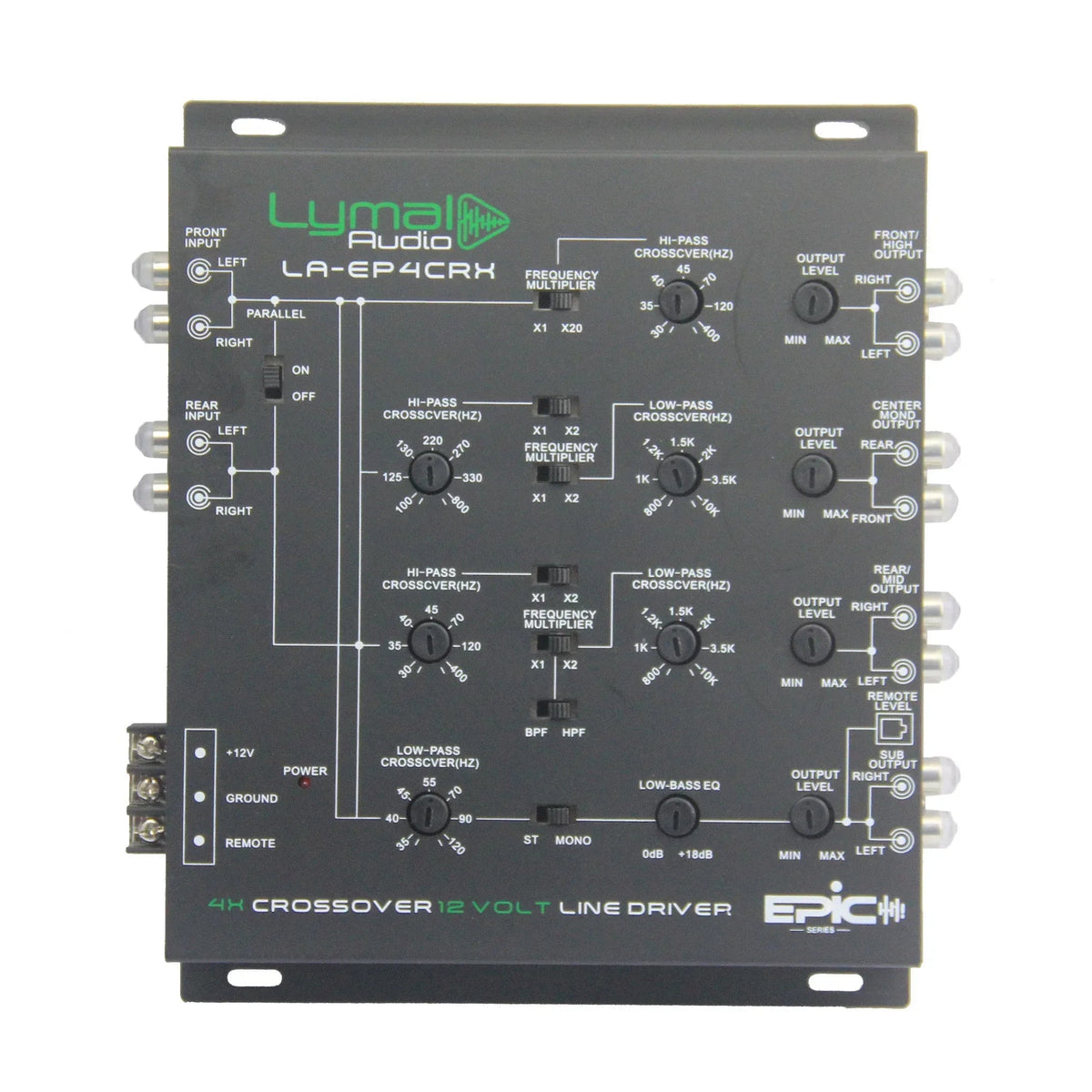

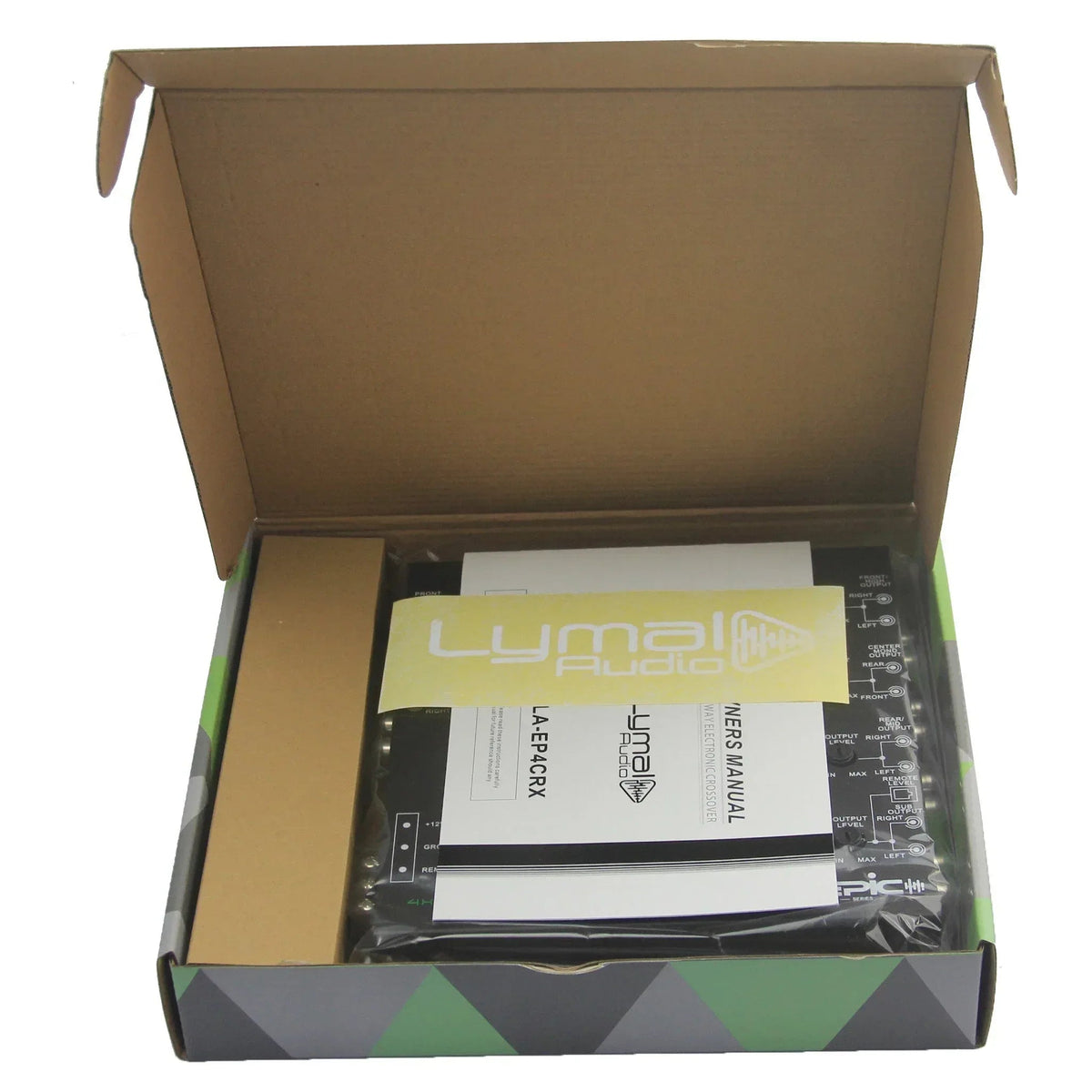

LA-EP4CRX 4 Way 12 Volt Electronic Crossover
- Ships free · 1–2 business day processing · Estimated transit: 3–10 business days
- 30-day returns — free U.S. return shipping · Refund policy
- Secure Shopify checkout · U.S.-based support
- Final delivery estimate shown at checkout
Details
Lymal Audio 4 Way 12 Volt Car Audio Electronic Crossover LA-EP4CRX
Signal Processors 4ch input / 8 output (Line-Driver)
Specifications:
Power Source: 12 Volt DC
Input Current: 0.5 Amp Max
Distortion: 0.01% THD at 1v Output Level
Frecuency Respose: 10Hz - 30Khz - 3db
S/N Ratio: 95db
Separation: 60db
Crossover frecuencies variales:
Front High-Pass: x1 30-400Hz / x20 600-8Khz
Center High-Pass: x1 100-800Hz / x2 200-1.6Khz
Rear High-Pass: x1 30-400Hz / x2 60-800Hz
Center Low-Pass: x1 800-10Khz / x2 1.6k-20Khz
Rear Low-Pass: x1 800-10Khz / x2 1.6k-20Khz
Subwoofer: 35-120Hz
Low-pass: 18db per Octave 3rd Order
High-pass: 12db per Octave 2nd Order
Subwoofer boost: Single octave 0 db to 12 db (variable) at 45 Hz
Input impedance: 20k Ohms
Output impedance: 100 Ohms
Dimensions: 196.5mm / 242mm / 41mm
